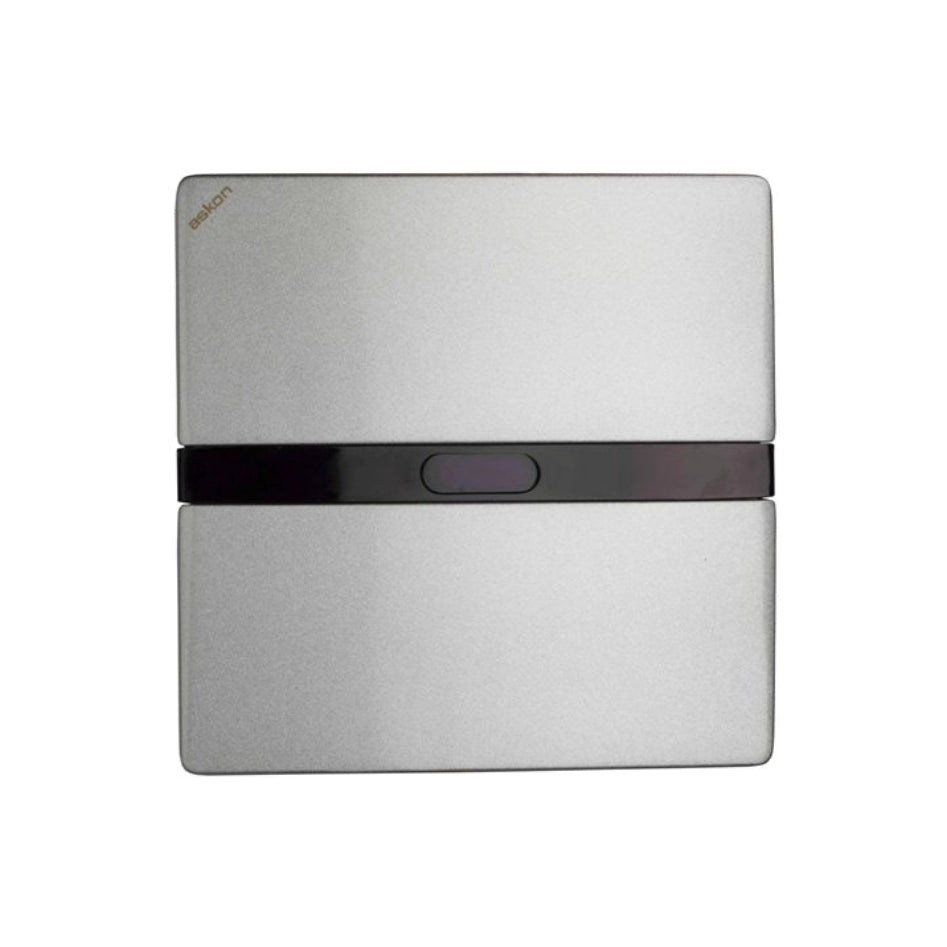

The AS 05-IR (E) / (B) Urinal Sensor is designed with a durable aluminum die-cast front plate for a sleek and modern appearance. It incorporates reliable and fast-acting sensor technology for accurate and efficient flushing. The front fascia plate is designed without visible screws, enhancing its aesthetic appeal.
A brass flow control valve is housed inside the unit, allowing the water supply to be turned ON or OFF as needed. The electronic sensor is fully sealed to prevent damage from water or moisture, and all connectors are waterproof for added durability.
The flush valve settings, including sensing range, flush duration, and pre-flush ON/OFF, can be conveniently adjusted using a remote, ensuring easy customization and maintenance.
- Concealed design with aluminum die-casting front plate for AS 05-IR
- Moisture-resistant electronic circuit sealed with resin
-
Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)
- Nylon solenoid valve (removable) and flow control valve inside the concealed box
-
Inlet and outlet connections: 1/2” B.S.P
-

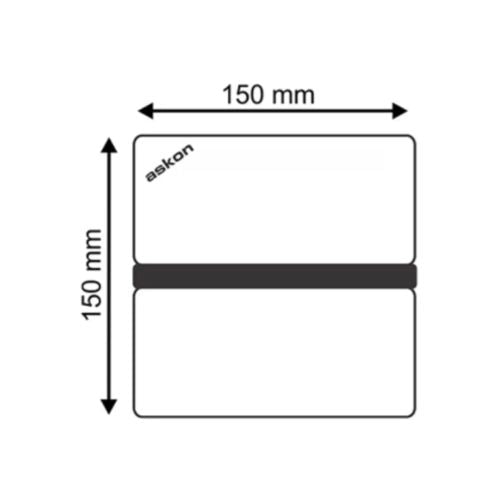

Front plate size: AS 05-IR - 150 mm (W) x 150 mm (H) x 11 mm (D)
-
Electrical type: 230V A/C single phase, Battery type: 6VDC (4 'AA' alkaline batteries)
- 360° debris screen (filter) for protection
- Remote-adjustable sensing range and flush duration (common remote for multiple units)
- Suffix (E) indicates electrical version, (B) indicates battery version
