The AS 06-IR (E) / (B) Urinal Sensor is a touch-free flushing solution designed for long-term reliability and ease of maintenance. It features a stainless steel front plate and frame, available in black, gold, and rose gold finishes in addition to the standard stainless steel brush finish. The front plate is magnetically fitted without visible screws, enhancing the overall aesthetic.

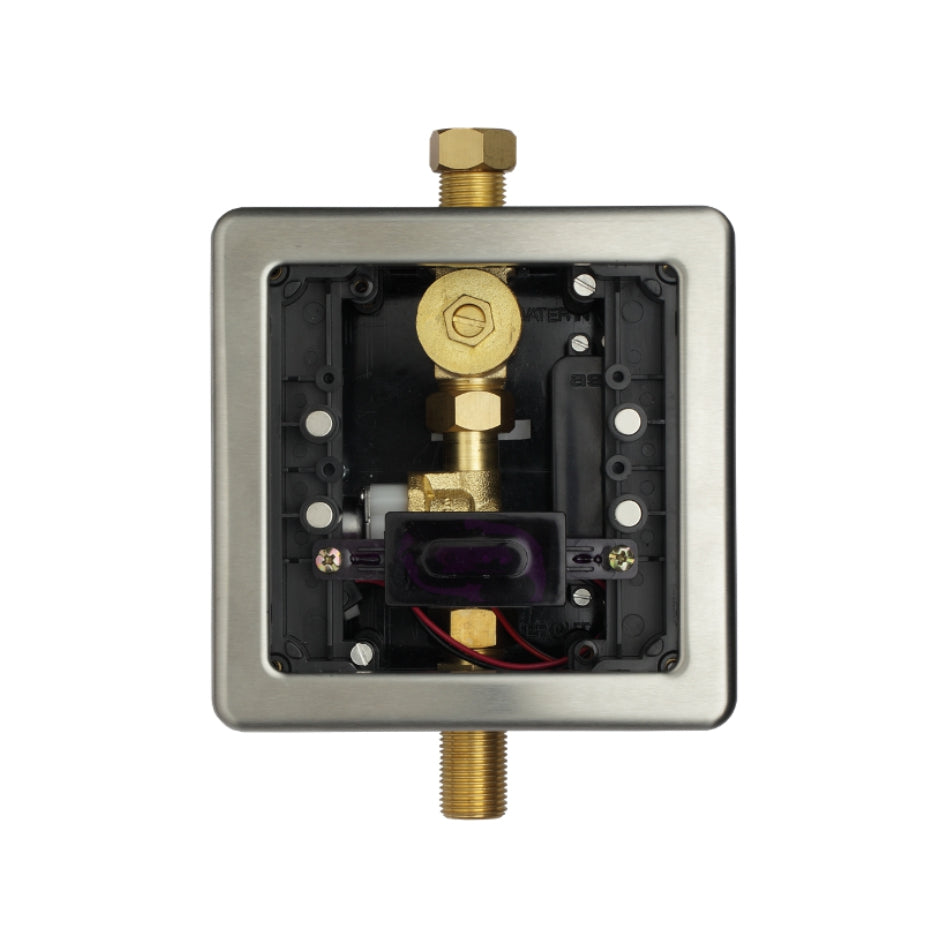

A brass flow control valve is located inside the box, allowing users to turn the water supply ON or OFF as needed. The urinal sensor is equipped with a high-durability brass solenoid valve with a lifespan exceeding 10 years. The electronic sensor is fully sealed with resin to protect against moisture and water damage.
The flush valve settings, including sensing range and flush duration, can be adjusted externally using a remote, eliminating the need to open the flush valve. Additionally, all components of the sensor flush valve can be replaced without breaking tiles or walls, ensuring hassle-free maintenance over its lifespan.
- S.S. #304 front plate for AS 06-IR
-

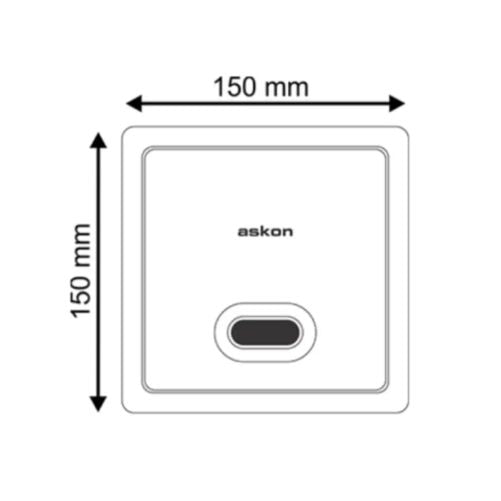

Front plate size: AS 06-IR - 150 mm (W) x 150 mm (H) x 8 mm (D)
-
Electrical type: 230V A/C single phase, Battery type: 6VDC (4 'AA' alkaline batteries)
- Moisture-resistant electronic circuit sealed with resin
-
Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)
- Brass solenoid valve (removable) and flow control valve inside the concealed box
-
Inlet and outlet connections: 1/2” B.S.P
- 360° debris screen (filter) for protection
- Remote-adjustable sensing range and flush duration (common remote for multiple units)
- Suffix (E) indicates electrical version, (B) indicates battery version
