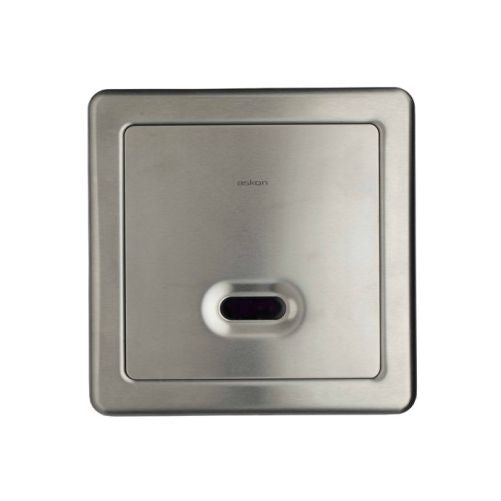

The AS 08-IR (E) / (B) Urinal Sensor is a high-performance, touch-free flushing system designed for modern washrooms. It features a stainless steel front plate and frame in a brush or satin finish, ensuring durability and a sleek appearance. This model is also available in black, gold, and rose gold to complement different washroom décors.

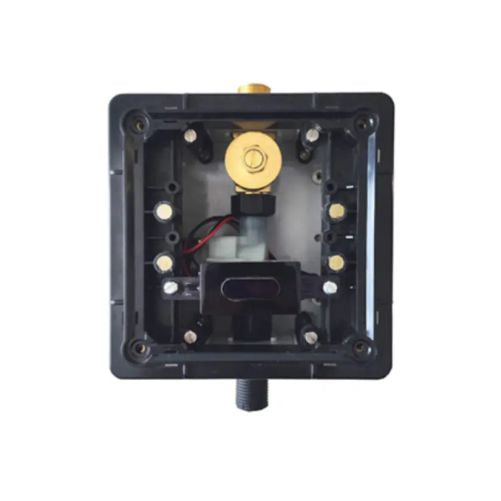

The front plate is magnetically fitted without visible screws, enhancing its aesthetic appeal. Inside the control box, a brass flow control valve and a nylon solenoid valve with dual filter technology ensure smooth water flow while preventing debris buildup. The water supply can be manually turned ON or OFF from the control box for maintenance.
The electronic sensor is completely sealed to prevent moisture damage, and all connectors are waterproof. Users can adjust the flush valve settings, including sensing range, flush duration, and pre-flush activation, using a remote control.
- Concealed design with aluminum die-casting front plate for AS 08-IR
-

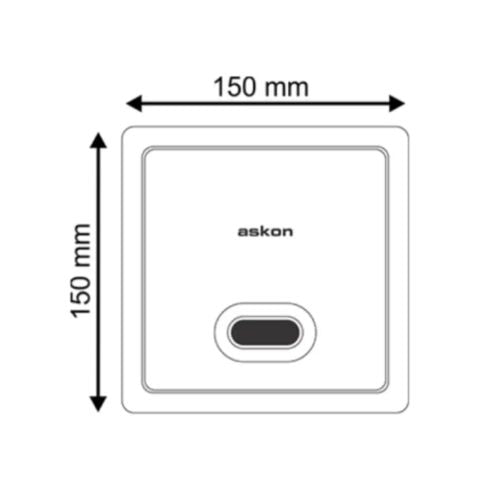

Front plate size: AS 08-IR - 150 mm (W) x 150 mm (H) x 8 mm (D)
-
Electrical type: 230V A/C single phase, Battery type: 6VDC (4 'AA' alkaline batteries)
- Moisture-resistant electronic circuit sealed with resin
-
Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)
- Nylon solenoid valve (removable) and brass flow control valve inside the concealed box
-
Inlet and outlet connections: 1/2” B.S.P
- 360° debris screen (filter) for protection
- Remote-adjustable sensing range and flush duration (common remote for multiple units)
- Suffix (E) indicates electrical version, (B) indicates battery version
